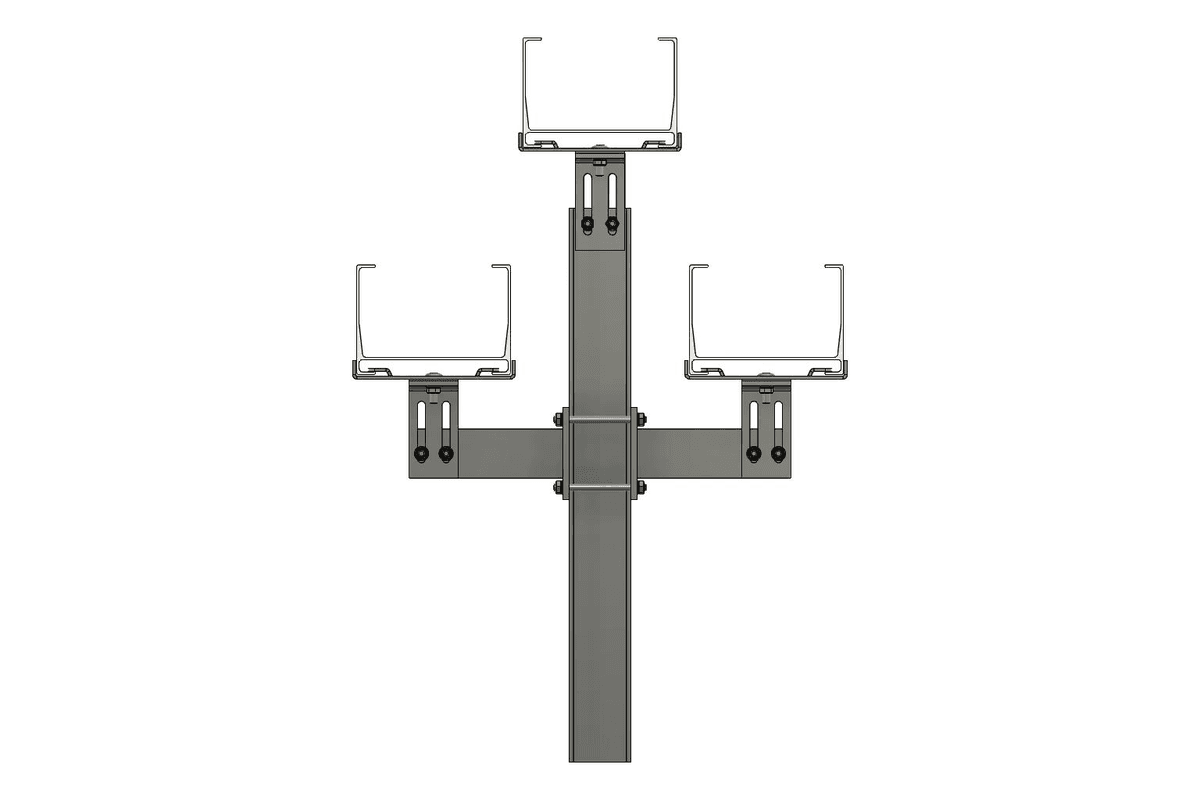

General arrangementSheet 1 of 5
Elevated
Troughing
Elevating Railway Infrastructure
Our advanced GRP troughing systems set new standards in railway cable management, combining durability, efficiency, and innovation.
Notes
- 1.High-quality materials and craftsmanship
- 2.Suitable for difficult terrains
- 3.Elevated Troughing are 6m Span
- 4.Available in 3 different sizes
- 5.Lids are securely fastened
- 6.Non-conductive, No Earthing or Static Electricity generated
- 7.Permanent dimensional stability between -30°C and 80°C. UV-resistant
- System
- Vario Top
- Material
- GRP
- Span
- 6 Metre
- Sizes
- 1 / 1a / 2
- Supplier
- RIVVAL LTD
AssemblySheet 2 of 5

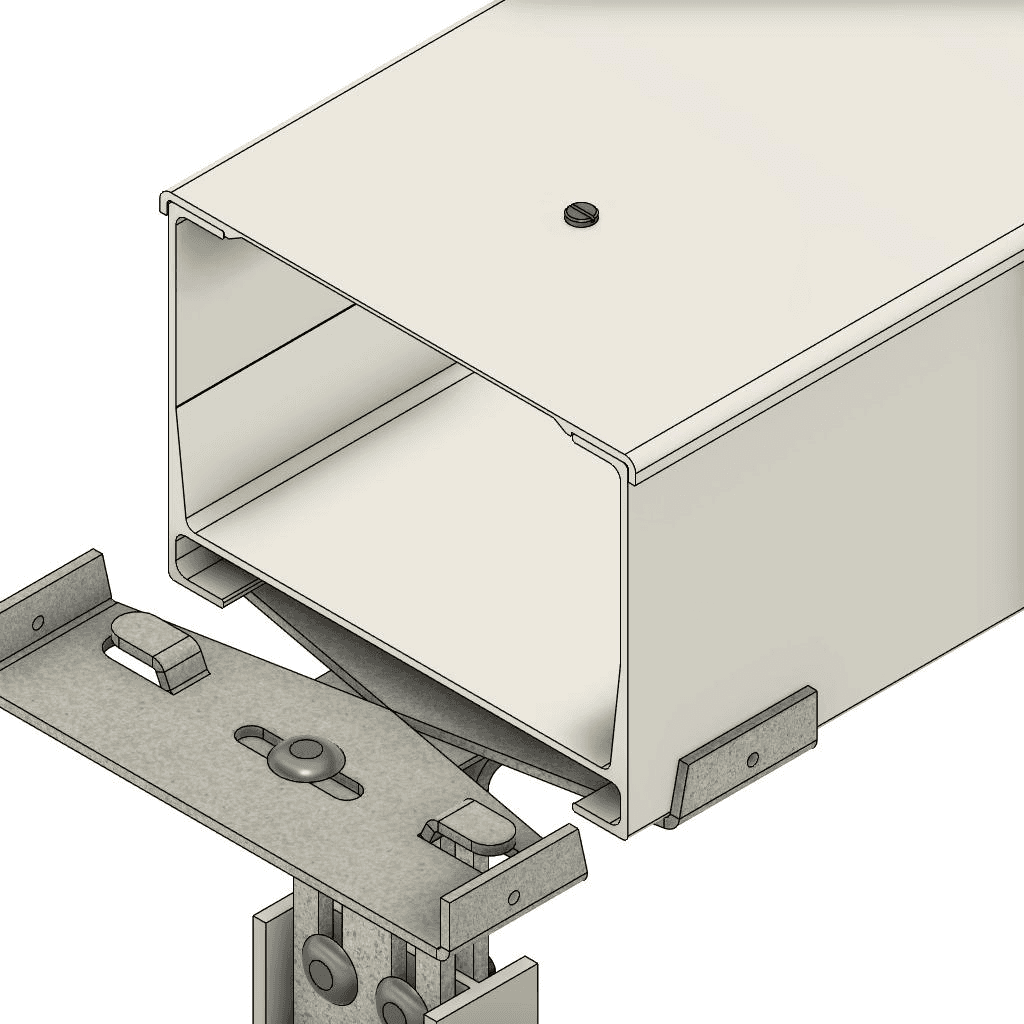

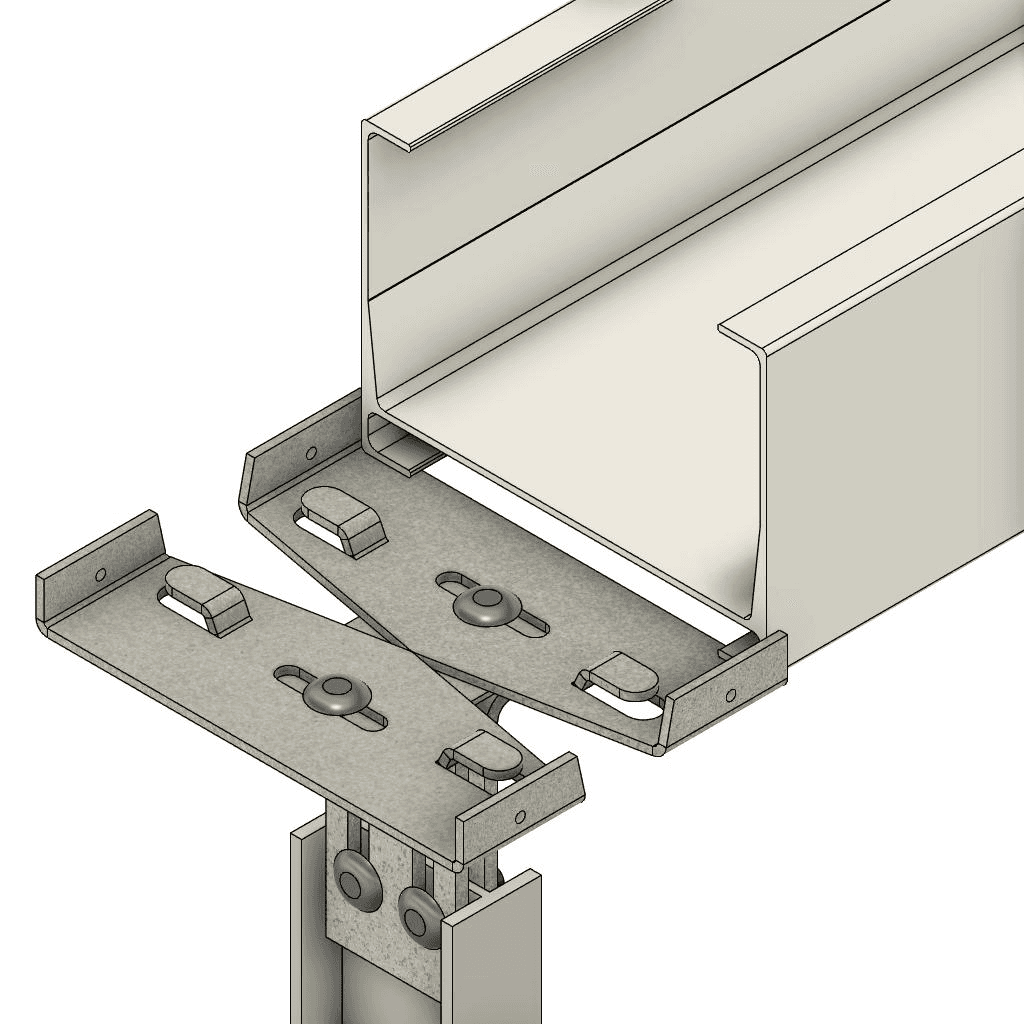

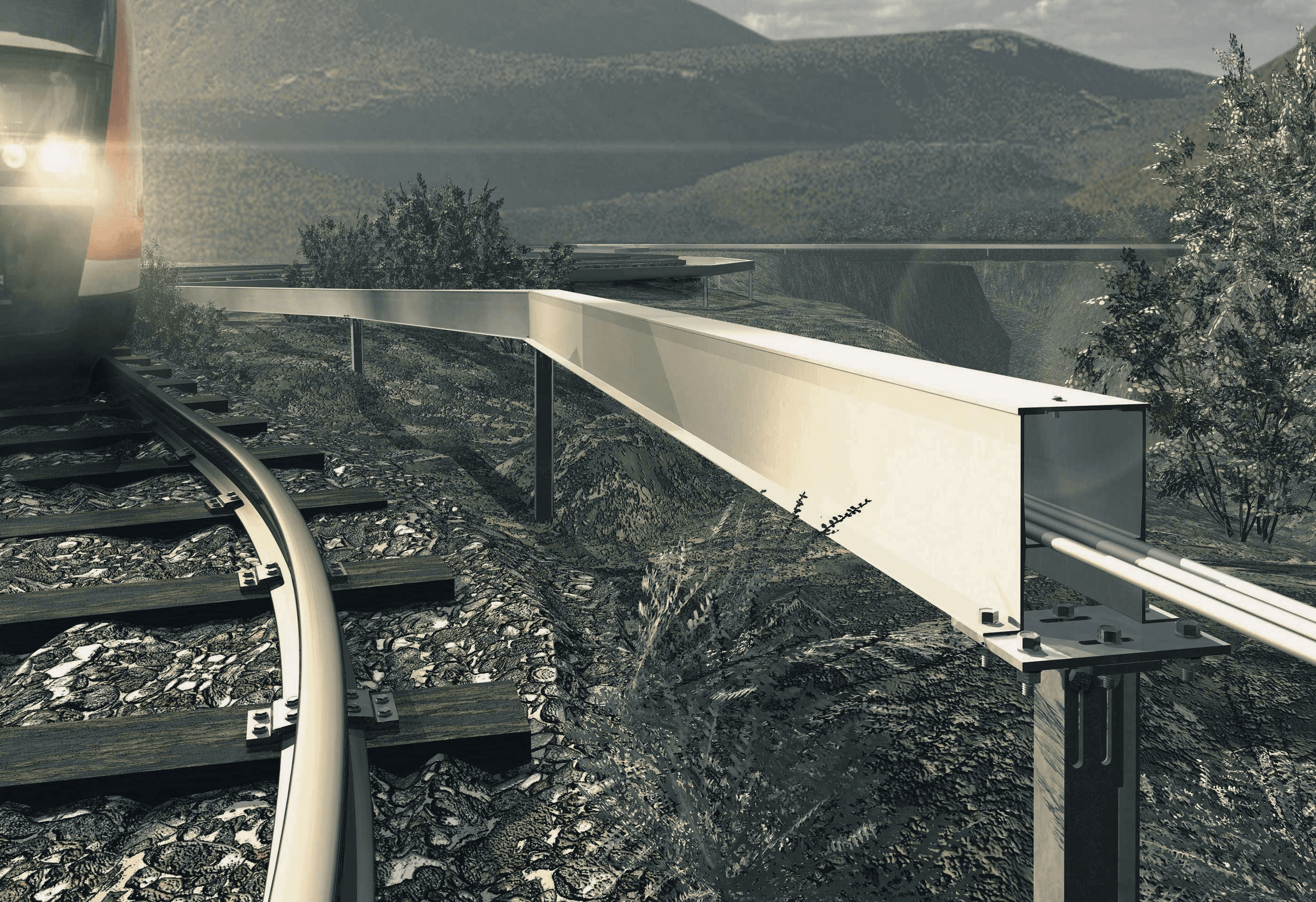

Vario Top Elevated Troughing
Elevated Troughing. 6 Metre Span GRP Cable Ducting.
Available in Size 1. Size 1a. Size 2.
Item list
- 1.Trough and lid

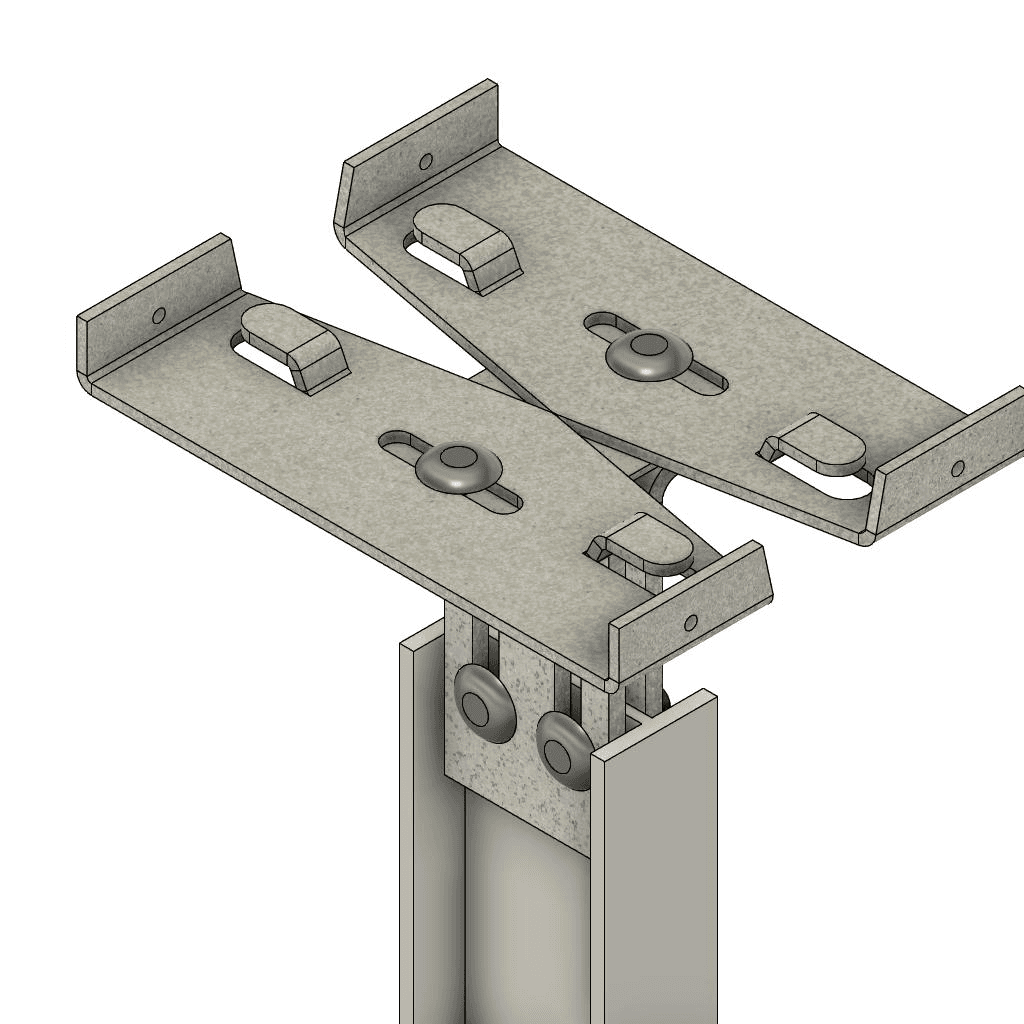

- 2.Mounting bracket
- 3.Post bracket

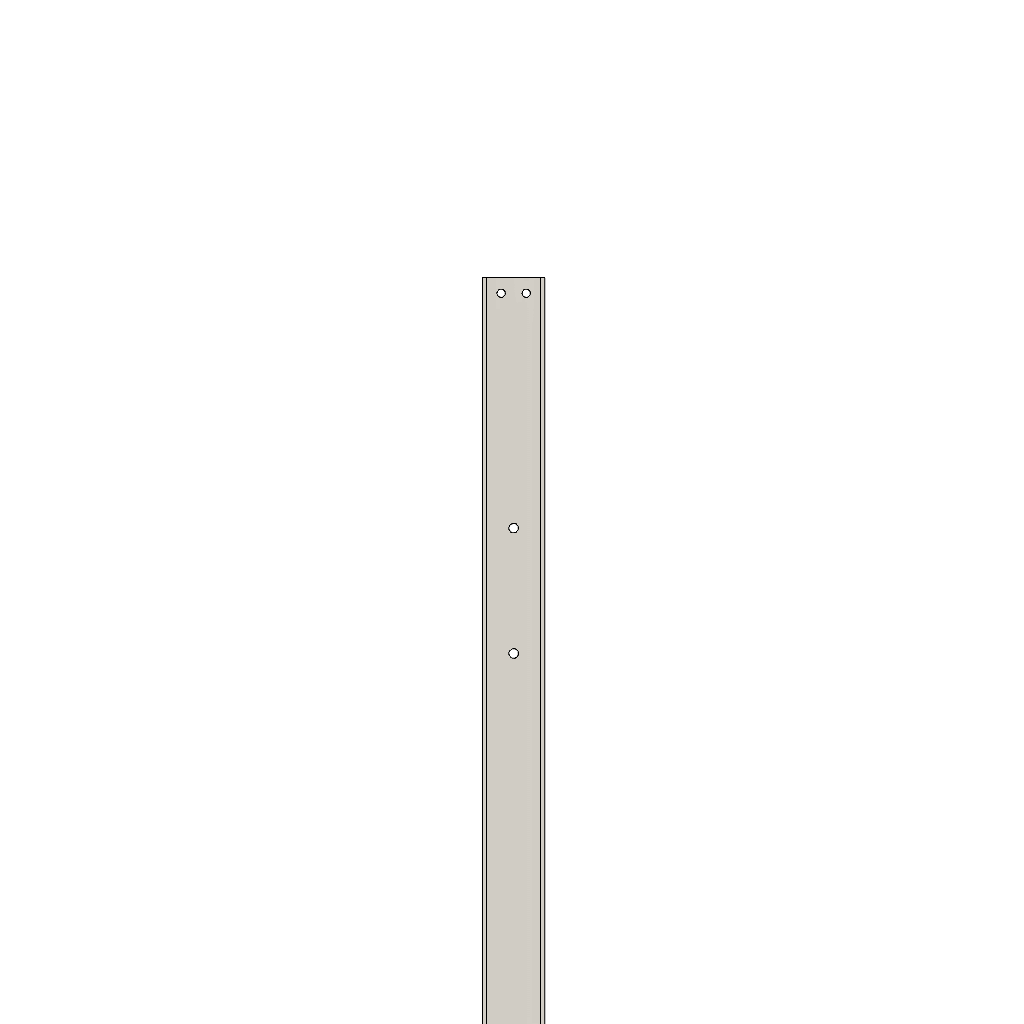

- 4.Pillar
System
- Rapid Deployment
- Fast and easy installation.
- Powerful Features
- Rigorous testing and quality assurance.
- Highly Adjustable
- Wide range of brackets and pillars
- Secure by Default
- Securely fastened lids.
- Scalable Infrastructure
- Scalable system to easily expand.
- User Friendly
- Non Conductive, No Earthing.
Parts scheduleSheet 3 of 5
Popular Categories
| Item | Category | Products |
|---|---|---|
| 01 | Troughing | 9 |
| 02 | Pillar | 7 |
| 03 | Mounting Brackets | 27 |
| 04 | Fixings | 21 |
| 05 | Outlets | 2 |
| 06 | Coupling Boxes | 3 |
| 07 | End Caps | 3 |
| 08 | Tools | 3 |
| 09 | Pillar RAMs | 2 |
Installation sequenceSheet 4 of 5
Rapid Installation
Installation
01 · Pile
02 · Attach
03 · Slide
04 · Fix
ApprovalsSheet 5 of 5
Railway Approvals
Irish Rail Approval
Network Rail Approval
Deutsche Bahn Approval
Banedanmark Approval
