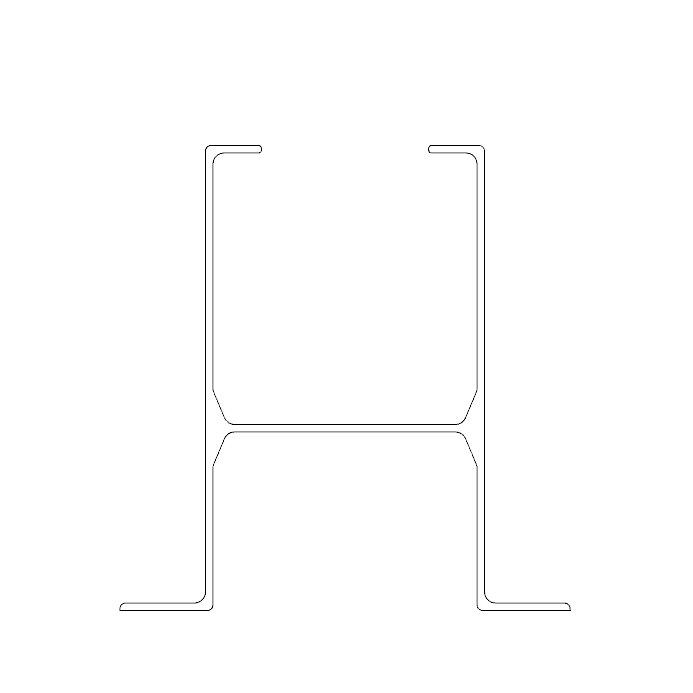

General arrangementSheet 1 of 3
Size 1a Trough Complete With Lid and Lid Fasteners
Product NumberRP00713/2
Size 1a Trough 6 metre Length. Complete With Lid and Lid Fasteners.
- Single piece 6m length for easy installation
- Robust GRP construction for durability
- Secure lid locking system for protection
- Designed for industrial cable management
This trough offers a reliable solution for organizing and protecting cables in various industrial environments. Its 6m length and GRP material make it both practical and long-lasting.
| Dimension | Value |
|---|---|
| Length | 6000 mm |
| Internal Width | 150 mm |
| Internal Height | 150 mm |
| Weight | 44 kg |
- Title
- Size 1a Trough Complete With Lid and Lid Fasteners
- Category
- Troughing
- Product no.
- RP00713/2
- Material
- GRP, Steel
- Status
- Available

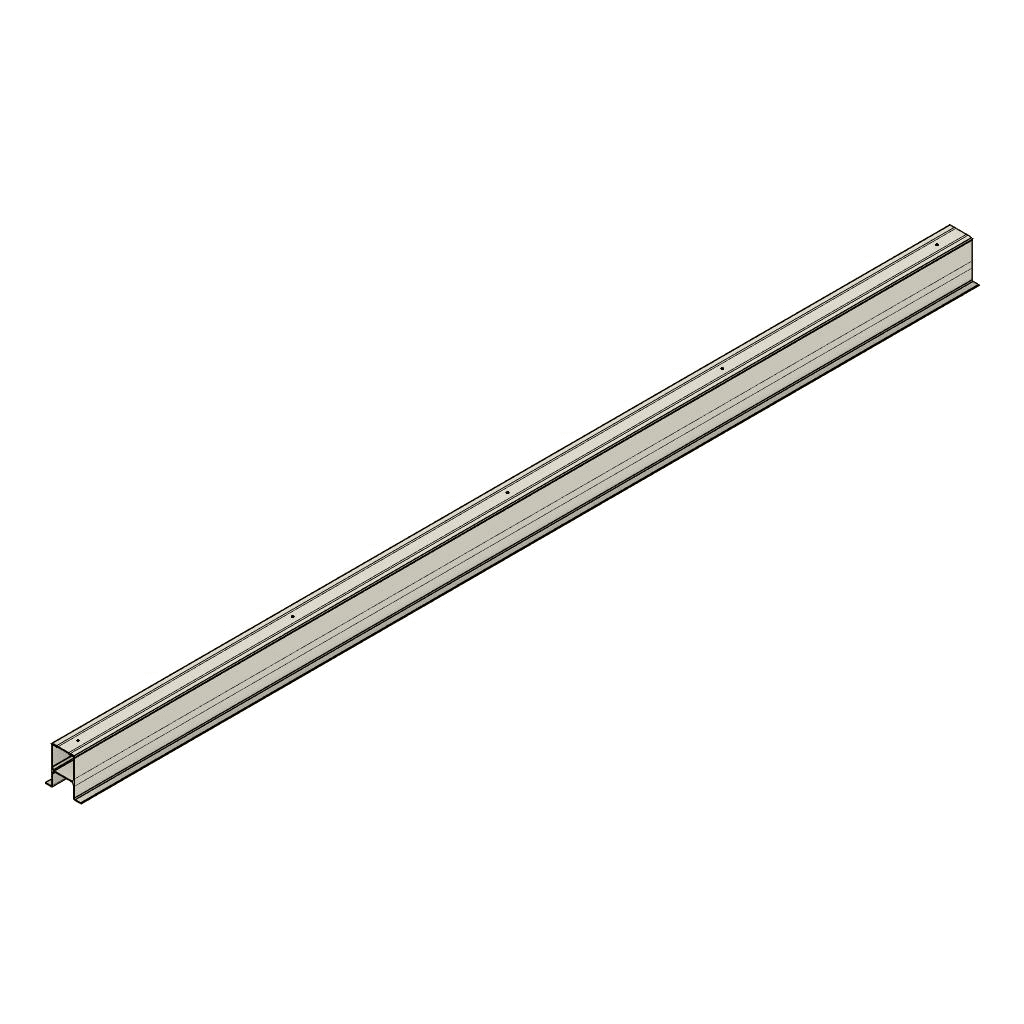

Parts listSheet 2 of 3
Bill of Materials
| Item | Part | Material | Quantity |
|---|---|---|---|
| 01 | Trough | GRP | 1 |
| 02 | Lid | GRP | 1 |
| 03 | Lid Fastener | Steel | 5 |
| 04 | Lid Fastener Screw | Steel | 5 |
SpecificationSheet 3 of 3
Technical Specifications
Key Features
- 1.Single Piece 6m Length
- 2.Robust design for industrial environments
- 3.Non-conductive, no earthing required
- 4.Secure lid locking system
| Specification | Value | Unit |
|---|---|---|
| Weight Per Metre | 7.4 | kg/M |
| Density | Pass | DIN EN ISO 1183-1 |
| Water absorption | Pass | DIN EN ISO 62 |
| Flammability (Thickness 3 mm / 6 mm) | Pass | UL 94 |
| Yield stress | Pass | DIN EN ISO 527 |
| Notched impact strength (charpy) | Pass | DIN EN ISO 179 |
| Shore hardness | Pass | DIN EN ISO 868 |
| Specification | Value | Unit |
|---|---|---|
| Dielectric constant | Yes | IEC 60250 |
| Dielectric dissipation factor (106Hz) | Yes | IEC 60250 |
| Volume resistivity | Yes | IEC 60093 |
| Surface resistivity | Yes | IEC 60093 |
| Comparative tracking index | Yes | IEC 60112 |
| Dielectric strength | Yes | IEC 60243 |
| Specification | Value | Unit |
|---|---|---|
| Melting temperature | Yes | ISO 11357-3 |
| Thermal conductivity | Yes | DIN 52612-1 |
| Thermal capacity | Yes | DIN 52612 |
| Coefficient of linear thermal expansion | Yes | DIN 53752 |
| Heat deflection temperature | Yes | DIN EN ISO 306, Vicat B |
