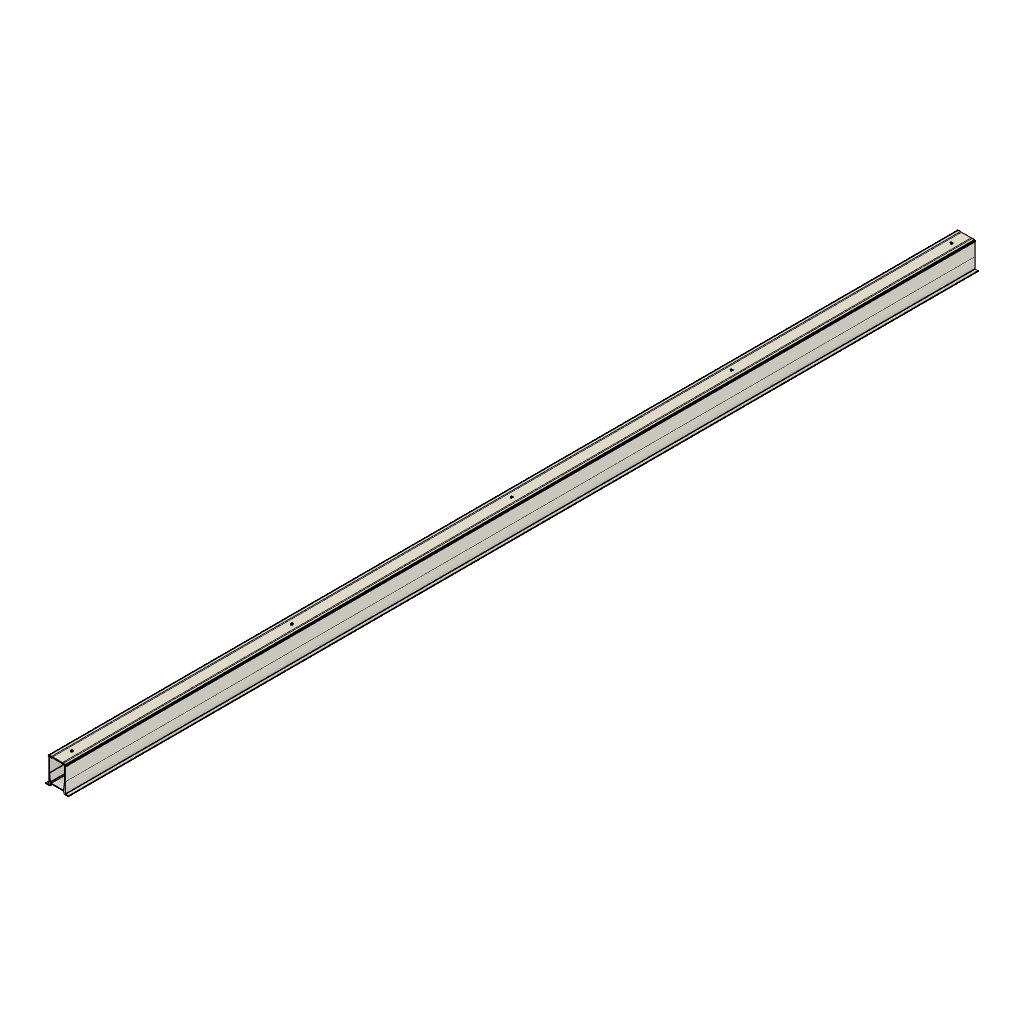

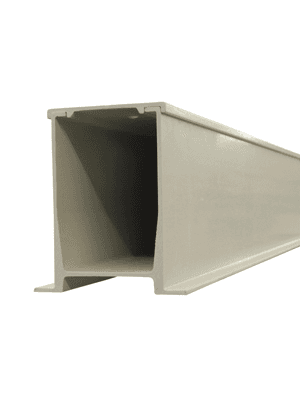

Size 1 Trough Complete With Lid and Lid Fasteners
Part Number: RP00700/1
Size 1 Trough 6 metre Length. Complete With Lid and Lid Fasteners. Features: - Single piece 6m length for easy installation - Robust GRP construction for durability - Secure lid locking system for protection - Designed for industrial cable management This trough offers a reliable solution for organizing and protecting cables in various industrial environments. Its 6m length and GRP material making it both practical and long-lasting.

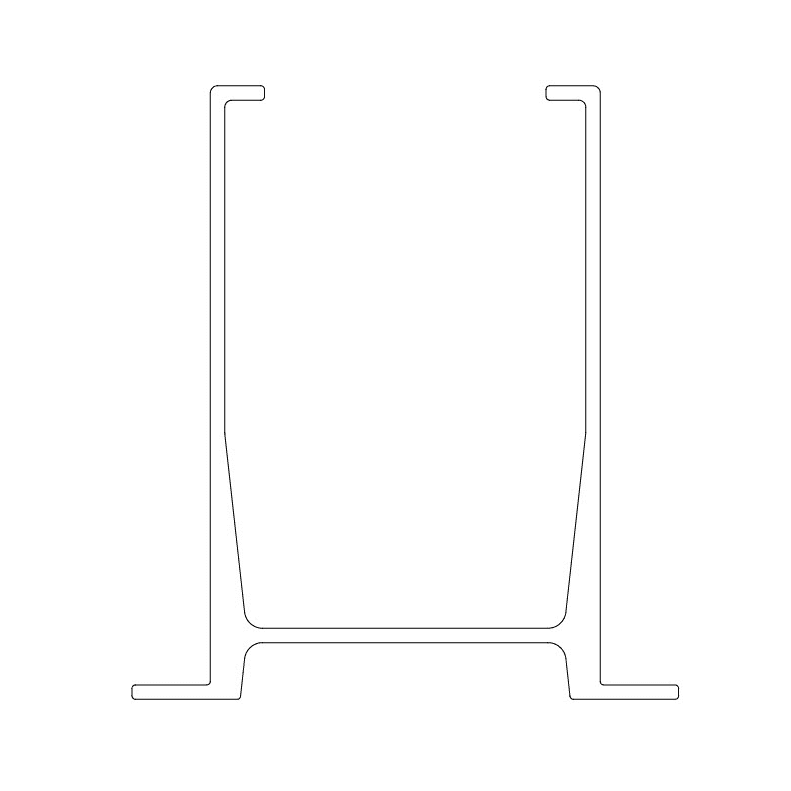

Product Dimensions
| Dimension | Value |
|---|---|
| Length | 6000 mm |
| Internal Width | 100 mm |
| Internal Height | 150 mm |
| Weight | 32 kg |
Key Features
- Single Piece 6m Length
- Robust design for industrial environments
- High-speed operation up to setup
- Secure lid locking system
Bill of Materials
Bill of Materials
Technical Specifications
| Specification | Value | Unit |
|---|---|---|
| Cable Load Capacity | 0.45 | kN/M |
| Weight Per Metre | 5.4 | kg/M |
| Density | Pass | DIN EN ISO 1183-1 |
| Water absorption | Pass | DIN EN ISO 62 |
| Flammability (Thickness 3 mm / 6 mm) | Pass | UL 94 |
| Yield stress | Pass | DIN EN ISO 527 |
| Notched impact strength (charpy) | Pass | DIN EN ISO 179 |
| Shore hardness | Pass | DIN EN ISO 868 |
