General arrangementSheet 1 of 2

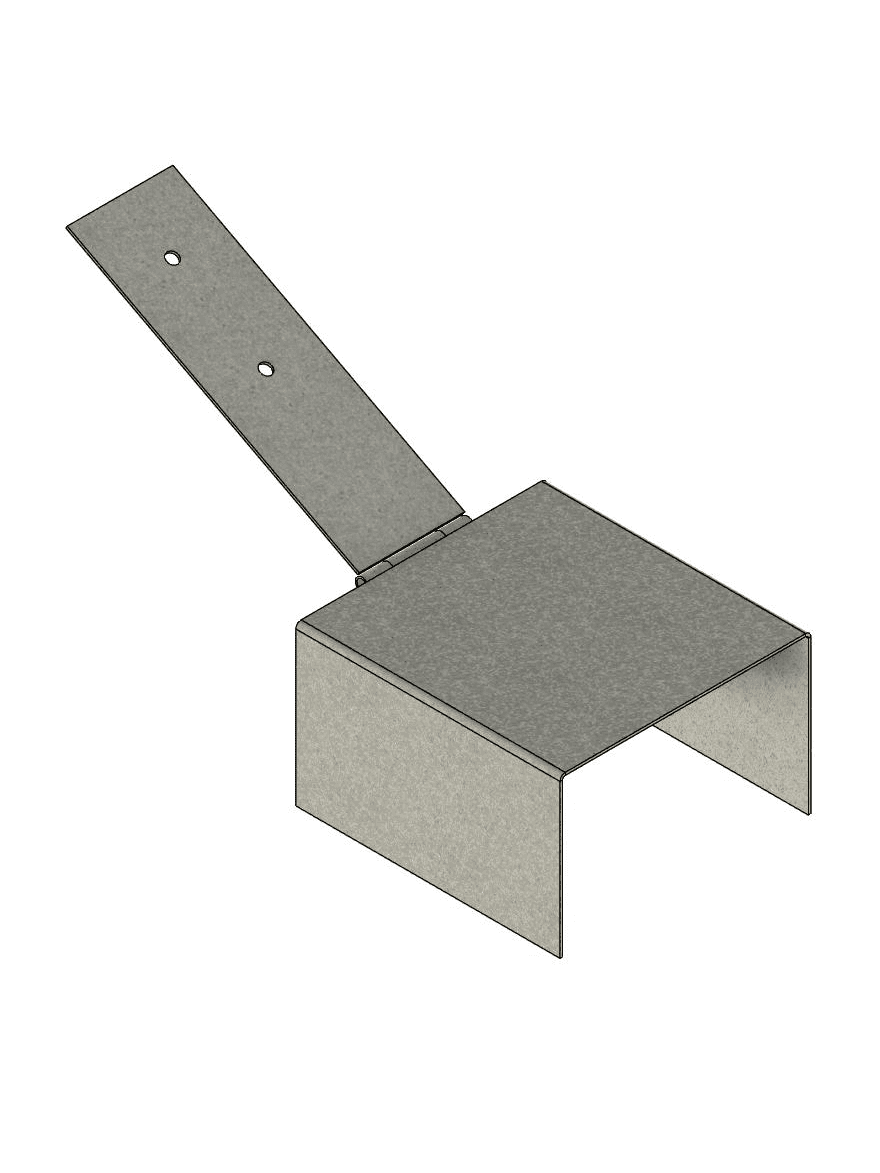

Transition Pieces to Concrete

Size Options
Item	Product no.	Trough size	To
01	RP00715/1	Size 1	C-1-6
02	RP00715/2	Size 1	C-1-7
03	RP00715/3	Size 1	C-1-8
04	RP00715/4	Size 1	C-1-9
05	RP00715/5	Size 1	C-1-10
06	RP00715/6	Size 1	C-1-29
07	RP00715/7	Size 1	C-1-43
08	RP00715/8	Size 1a	C-1-6
09	RP00715/9	Size 1a	C-1-7
10	RP00715/10	Size 1a	C-1-8
11	RP00715/11	Size 1a	C-1-9
12	RP00715/12	Size 1a	C-1-10
13	RP00715/13	Size 1a	C-1-29
14	RP00715/14	Size 1a	C-1-43
15	RP00715/15	Size 2	C-1-6
16	RP00715/16	Size 2	C-1-7
17	RP00715/17	Size 2	C-1-8
18	RP00715/18	Size 2	C-1-9
19	RP00715/19	Size 2	C-1-10
20	RP00715/20	Size 2	C-1-29
21	RP00715/21	Size 2	C-1-43

SpecificationSheet 2 of 2

Technical Specifications

Mechanical
Specification	Value	Unit
Material	Steel
Finish	Galvanised
