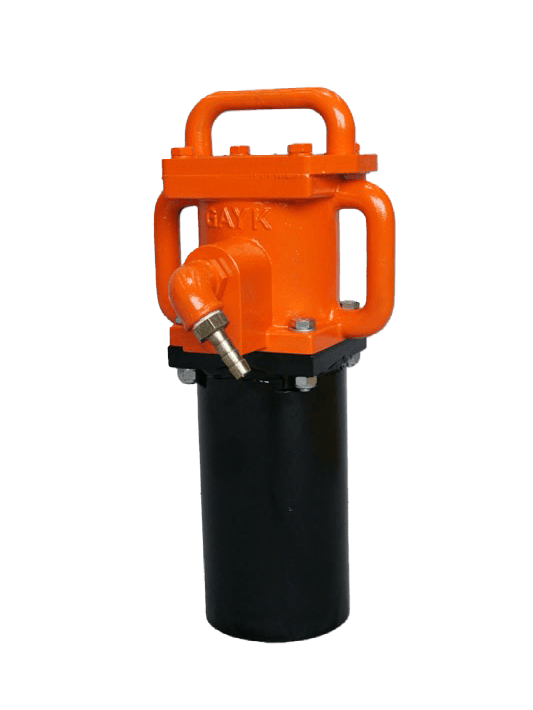

Pneumatic RAM 25Kg
Part Number: RP00714/1
Pneumatic RAM 25Kg Pneumatic pile drivers are ideal for driving steel posts, wooden posts, Sigma / IPE 100 delineator posts, vineyard posts, barrier poles, steel profiles, earthing rods, T-beams, tent poles and pipe posts. The ram itself should not be held, only the material to be driven. The pile driver can be used both vertically and horizontally The required pressure on the compressor should be between 5 and 6 bar Air consumption is extremely low The pile driver is placed like a hood over the pile to be driven and can be operated by one person
Key Features
- Single User Operated
- Low Air Consumption
- Versatile range of posts
- Used Vertically and Horizontally
Bill of Materials
Technical Specifications
| Specification | Value | Unit |
|---|---|---|
| Weight Pile driver | 25 | Kg |
| Weight piston | 5.2 | Kg |
| Piston Stroke | 25 | mm |
| Operating pressure (Air max.) | 5 | bar |
| Air consumption with 5 bar | 1.1 | m³/min |
| Impact energy with 5 bar | 1400 | |
| Total length | 450 | mm |
| max. external diameter of the ram gear | 90 | mm |
