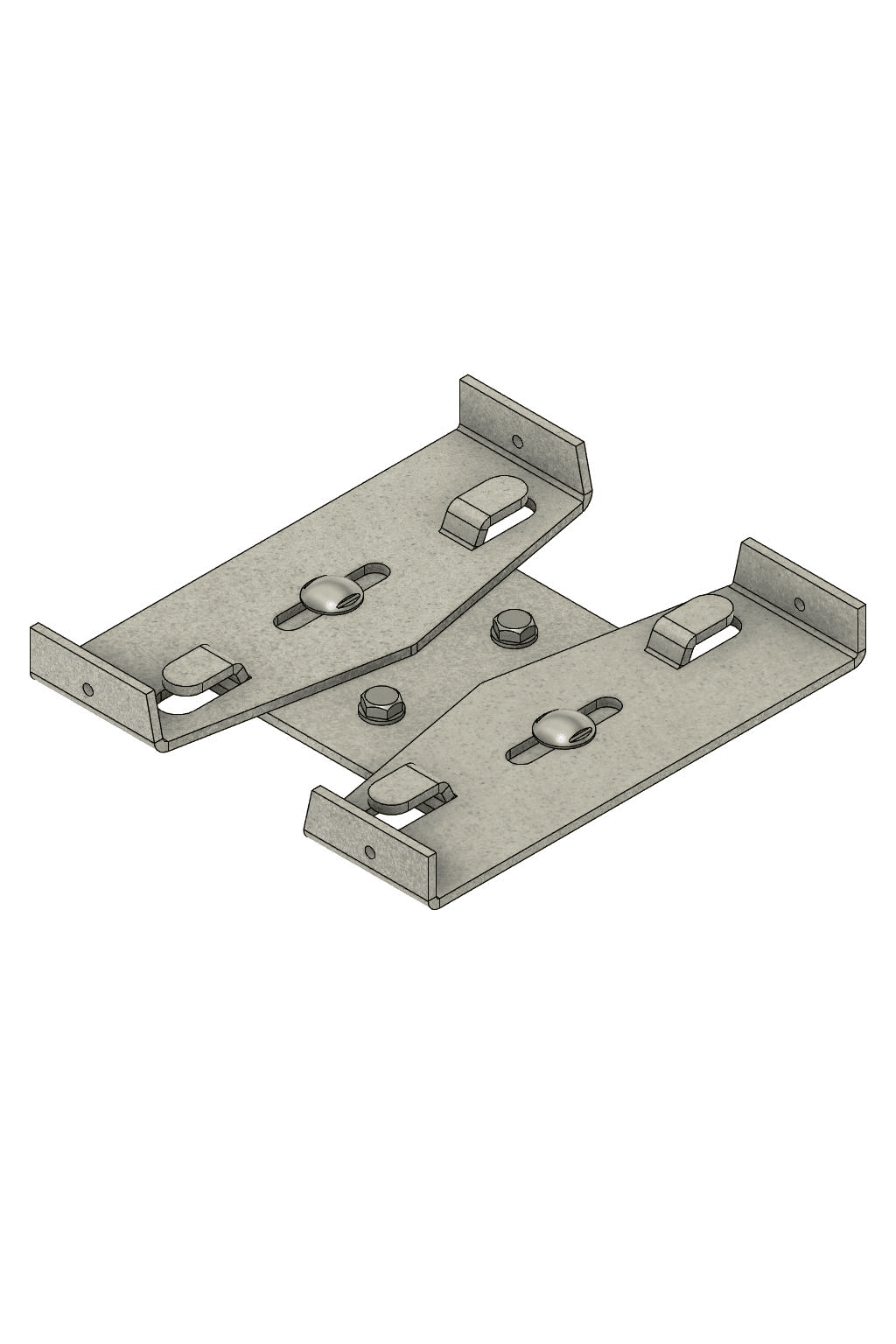

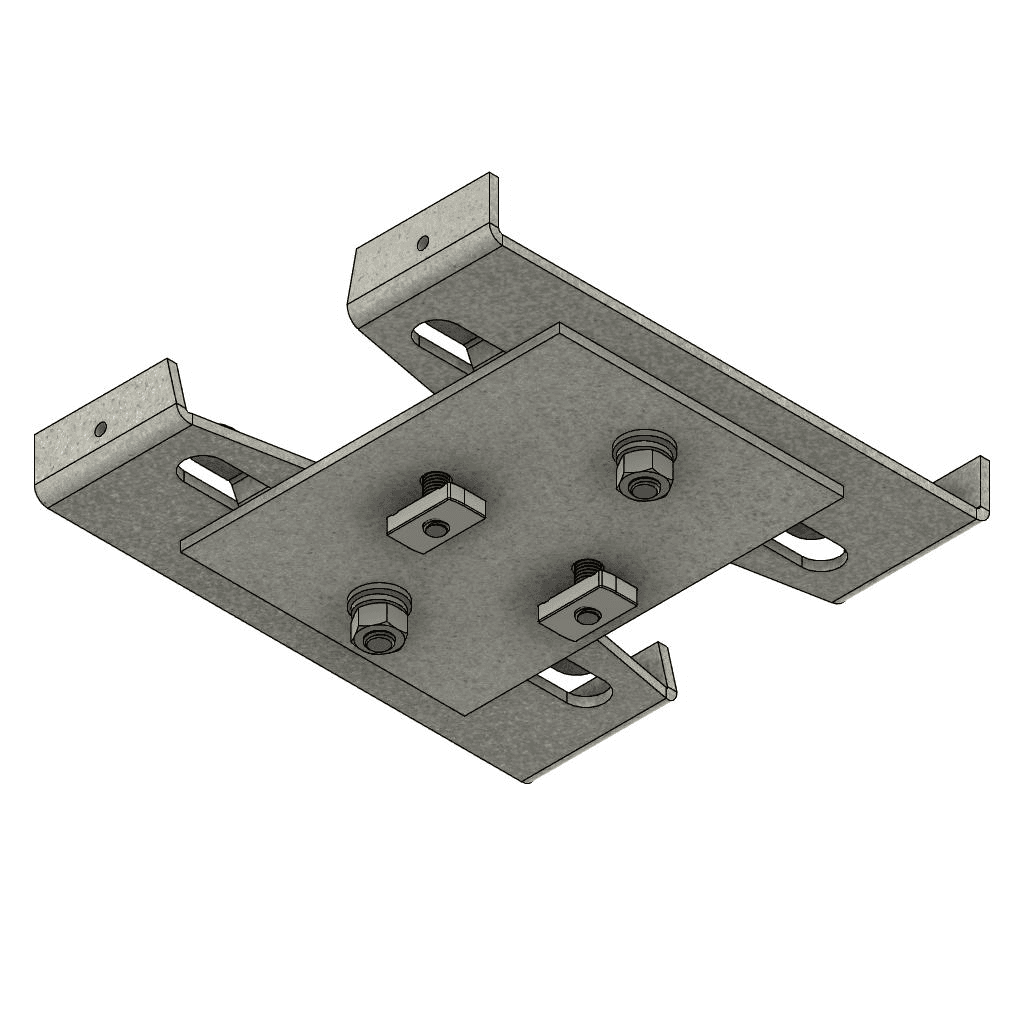

Unistrut Mounting Bracket Size 2

Unistrut Mounting Bracket Size 2

Part Number: 10042

Adjustable galvanized steel for secure mounting to unistrut. These versatile brackets feature horizontal adjustment allowing for precise alignment of the troughing system. Key features: Corrosion-resistant galvanized finish for durability Vertical adjustment range to accommodate various troughing heights Horizontal adjustment for fine-tuning lateral positioning Compatible with standard troughing sizes Easy installation and adjustment using bolts and slotted holes

Product Dimensions

DimensionValue
Horizontal Adjustment50 mm

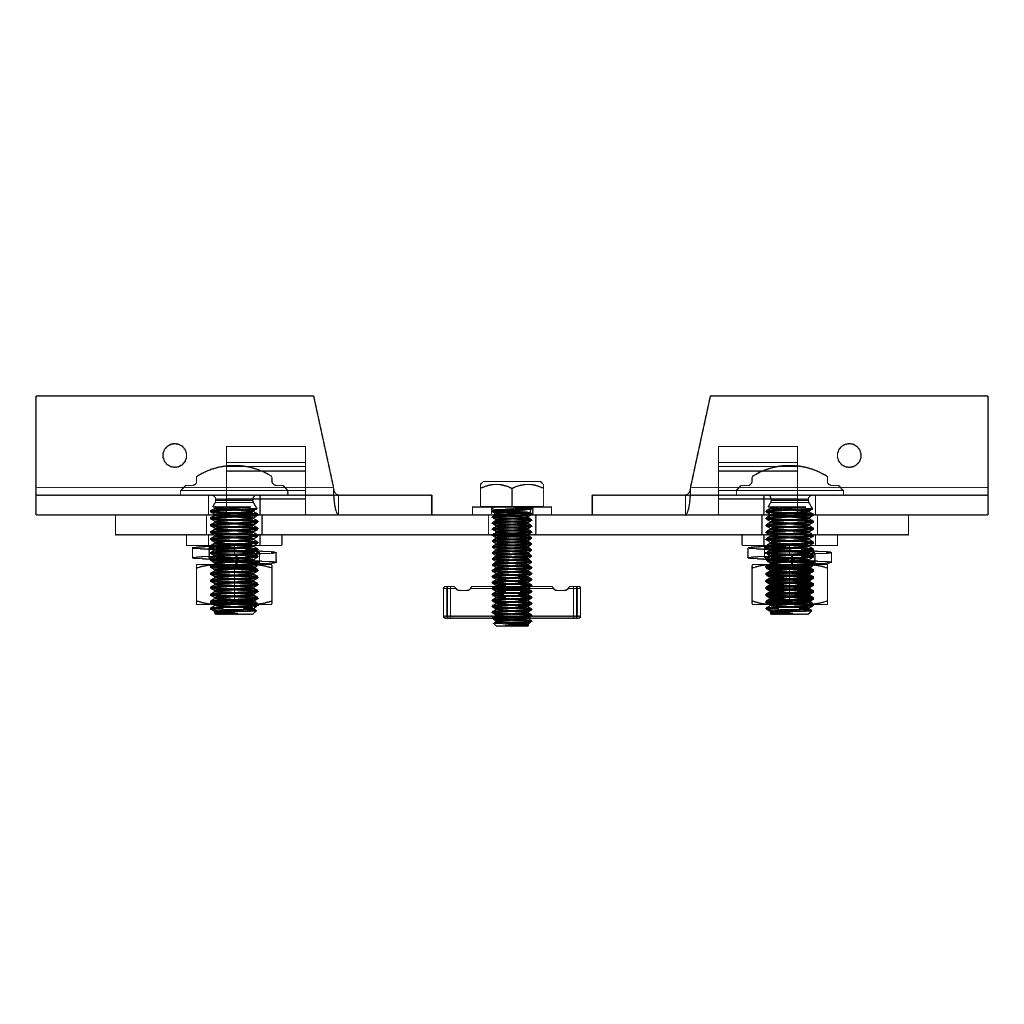

Unistrut Mounting Bracket Size 2 Dimensions

Bill of Materials

Unistrut Mounting Bracket Size 2 Bill of Materials

Bill of Materials

PartQuantityMaterial
Size 2 Support Plate2Steel
Unistrut Jointing Plate1Steel
Truss Bolt2Steel
Hex Bolt2Steel
Washer4Steel
Spring Washer4Steel
Nut4Steel
Unistrut Cage Nut2Steel
