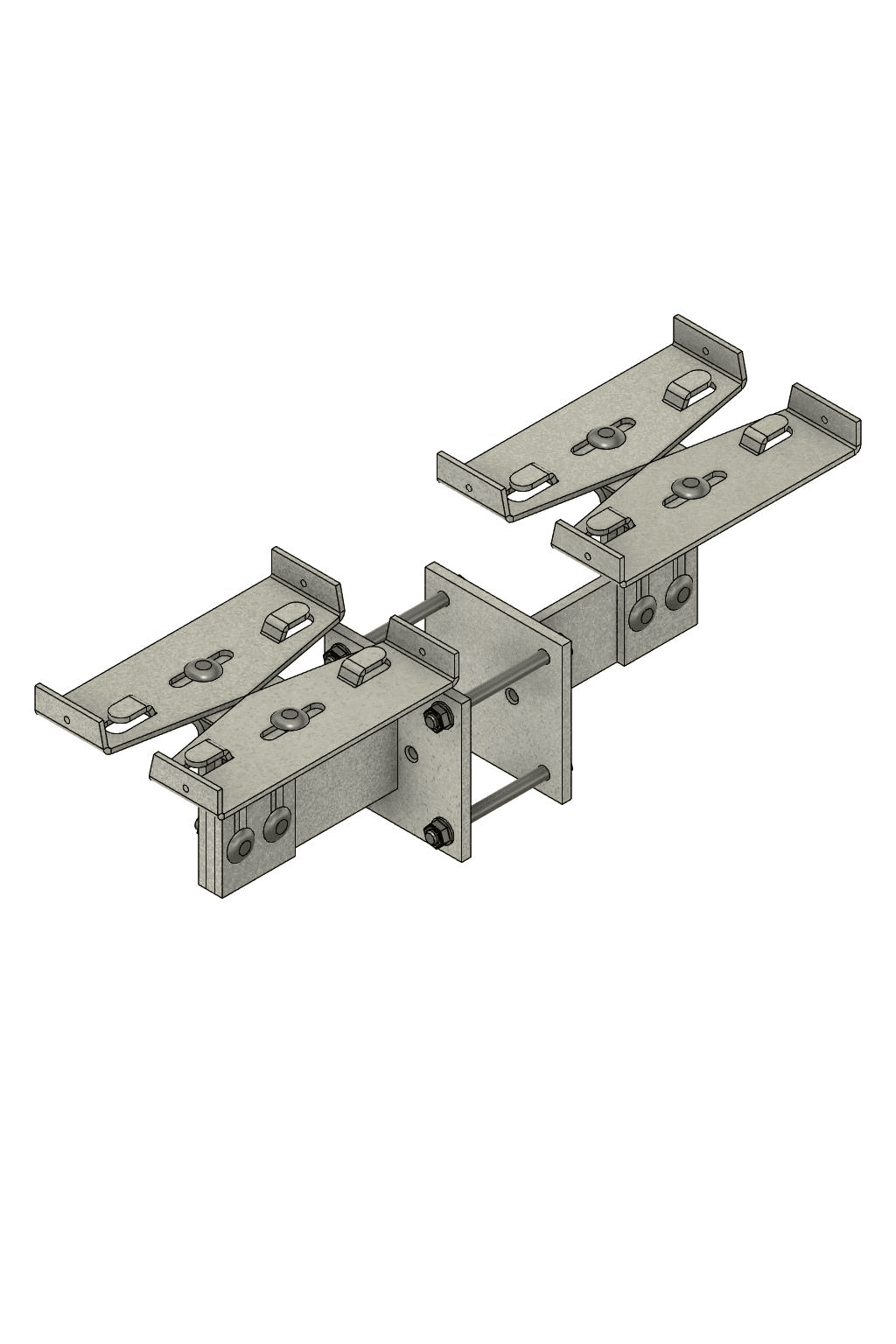

Post Twin Sided Bracket Size 1

Post Twin Sided Bracket Size 1

Part Number: 10028

Adjustable galvanized steel for secure twin side mounted attachment of troughing to pillars. These versatile brackets feature both vertical, horizontal adjustment mechanisms, allowing for precise positioning and alignment of the troughing system. Key features: Corrosion-resistant galvanized finish for durability Vertical adjustment range to accommodate various troughing heights Horizontal adjustment for fine-tuning lateral positioning Compatible with standard troughing sizes Easy installation and adjustment using bolts and slotted holes

Product Dimensions

DimensionValue
Vertical Adjustment85 mm
Horizontal Adjustment50 mm
Outrigger160 mm
Fixing HolesM12

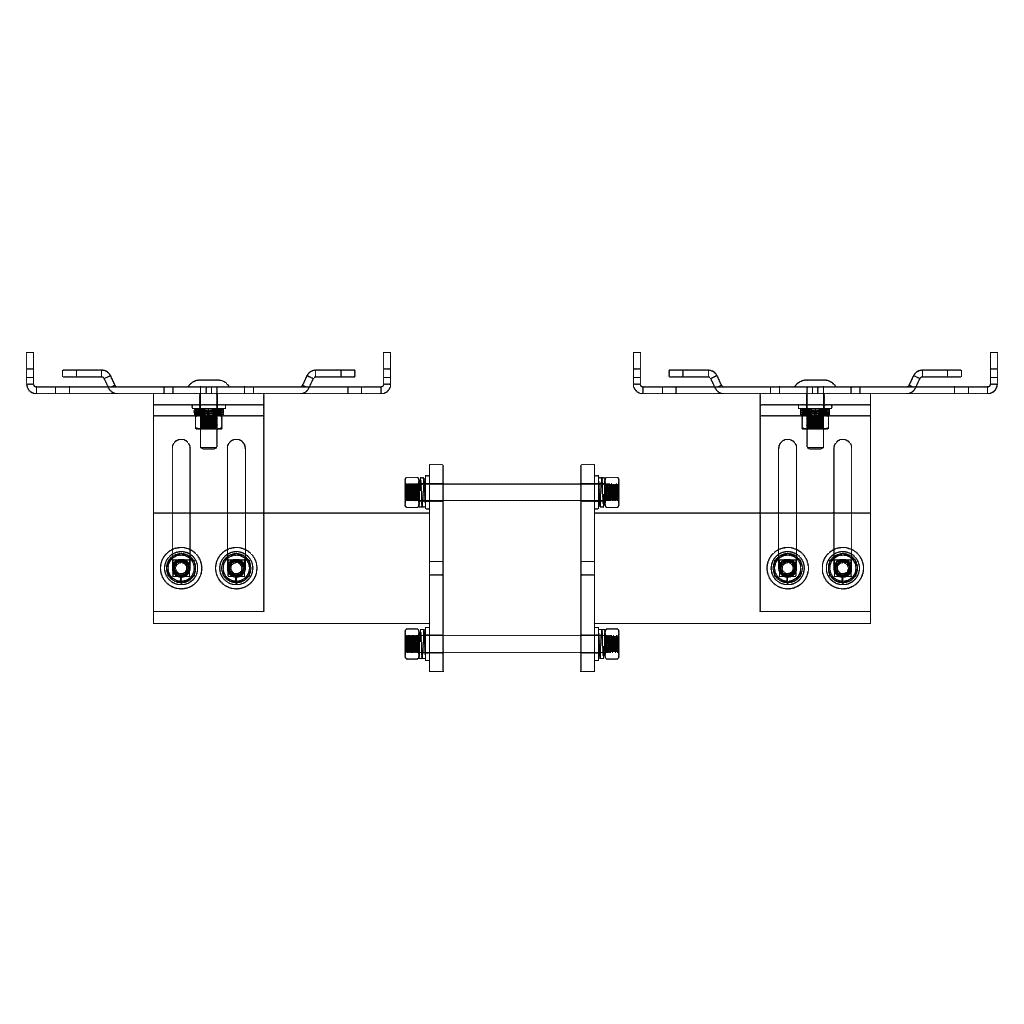

Post Twin Sided Bracket Size 1 Dimensions

Bill of Materials

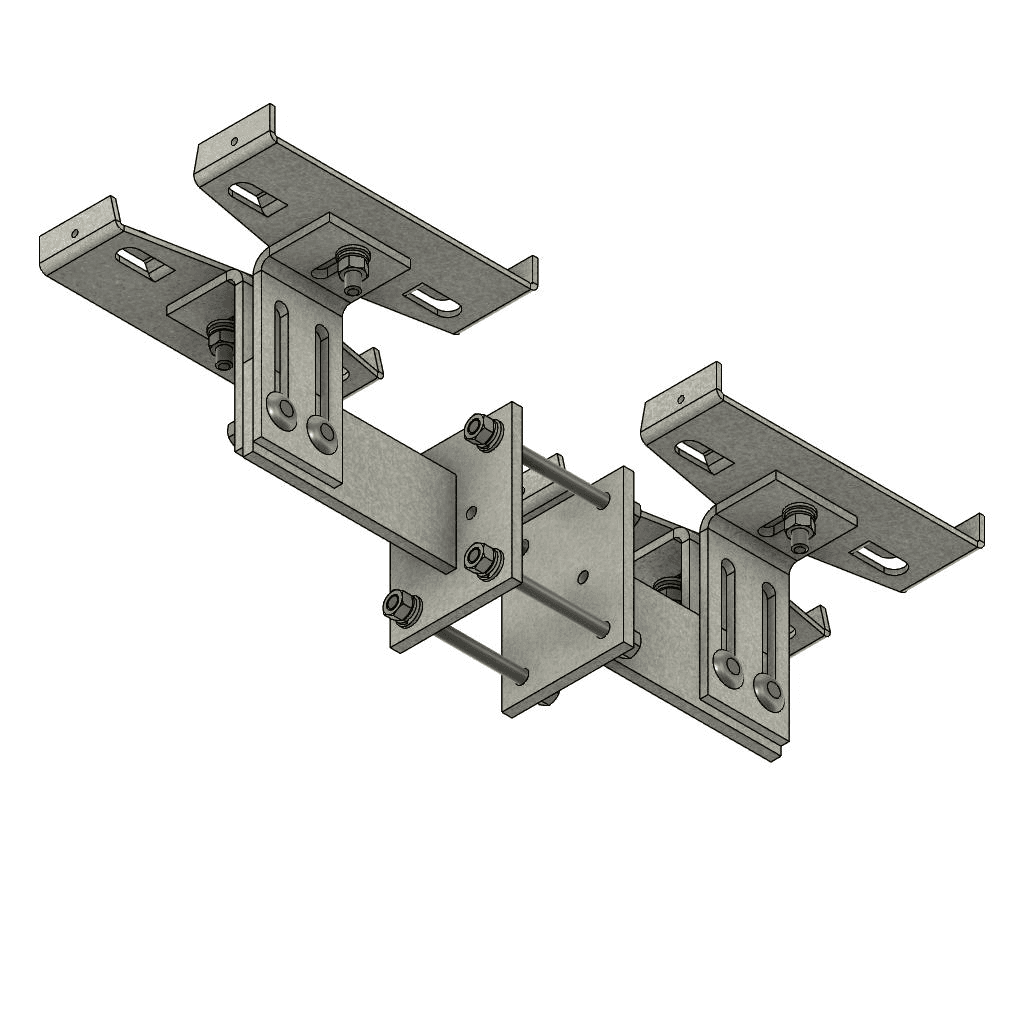

Post Twin Sided Bracket Size 1 Bill of Materials

Bill of Materials

PartQuantityMaterial
Mounting Bracket Size 12Steel
160mm Outrigger Post Bracket2Steel
Threaded Rod4Steel
Washer8Steel
Spring Washer8Steel
Nut8Steel
