Post Lowering Size 2

Post Lowering Size 2

Part Number: 10027

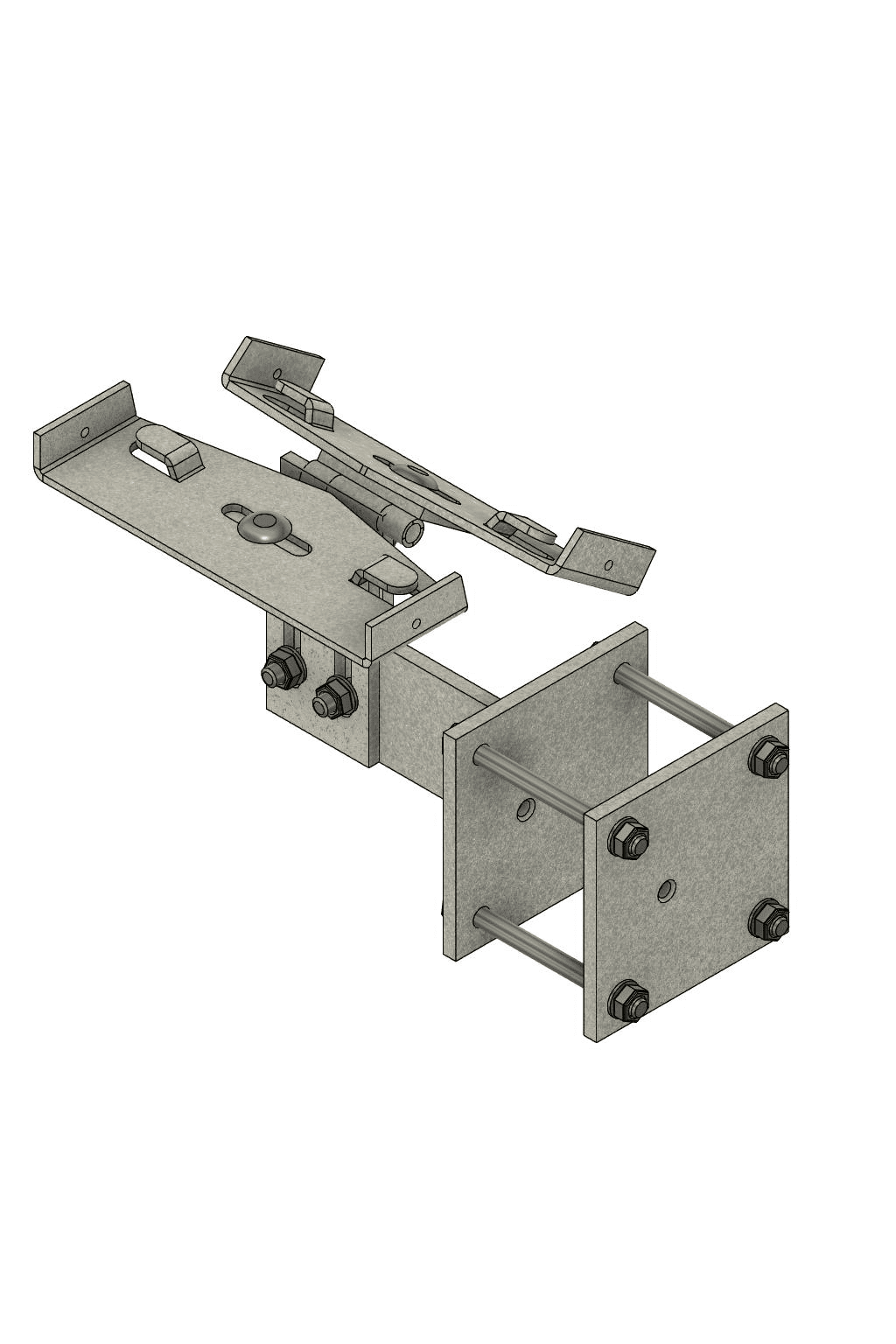

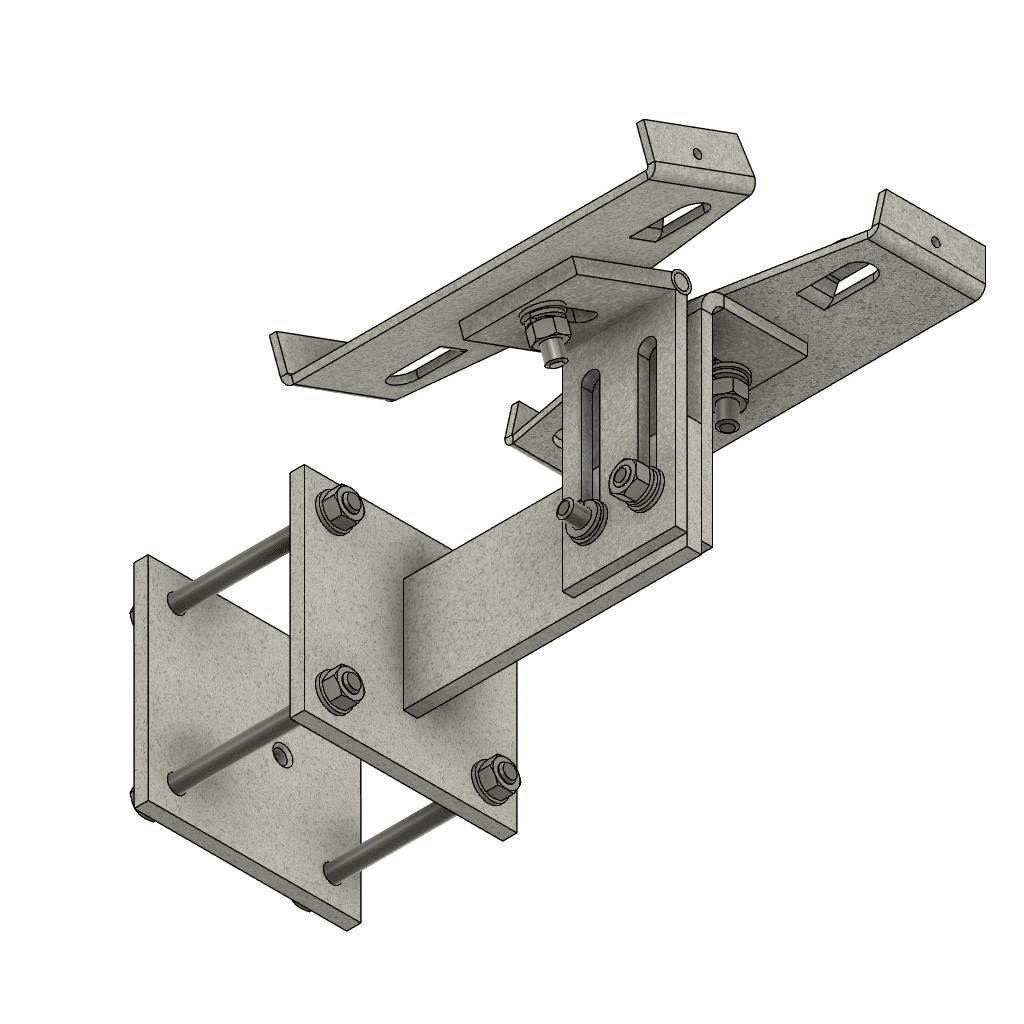

Adjustable galvanized steel for secure side mounted attachment of troughing to pillars. These versatile brackets feature both vertical, horizontal adjustment mechanisms and hinged bracket to transition from elevation to ground level, allowing for precise positioning and alignment of the troughing system. Key features: Corrosion-resistant galvanized finish for durability Vertical adjustment range to accommodate various troughing heights Horizontal adjustment for fine-tuning lateral positioning Compatible with standard troughing sizes Easy installation and adjustment using bolts and slotted holes

Product Dimensions

DimensionValue
Vertical Adjustment85 mm
Horizontal Adjustment50 mm
Angle45 degrees
Outrigger200 mm
Fixing HolesM12

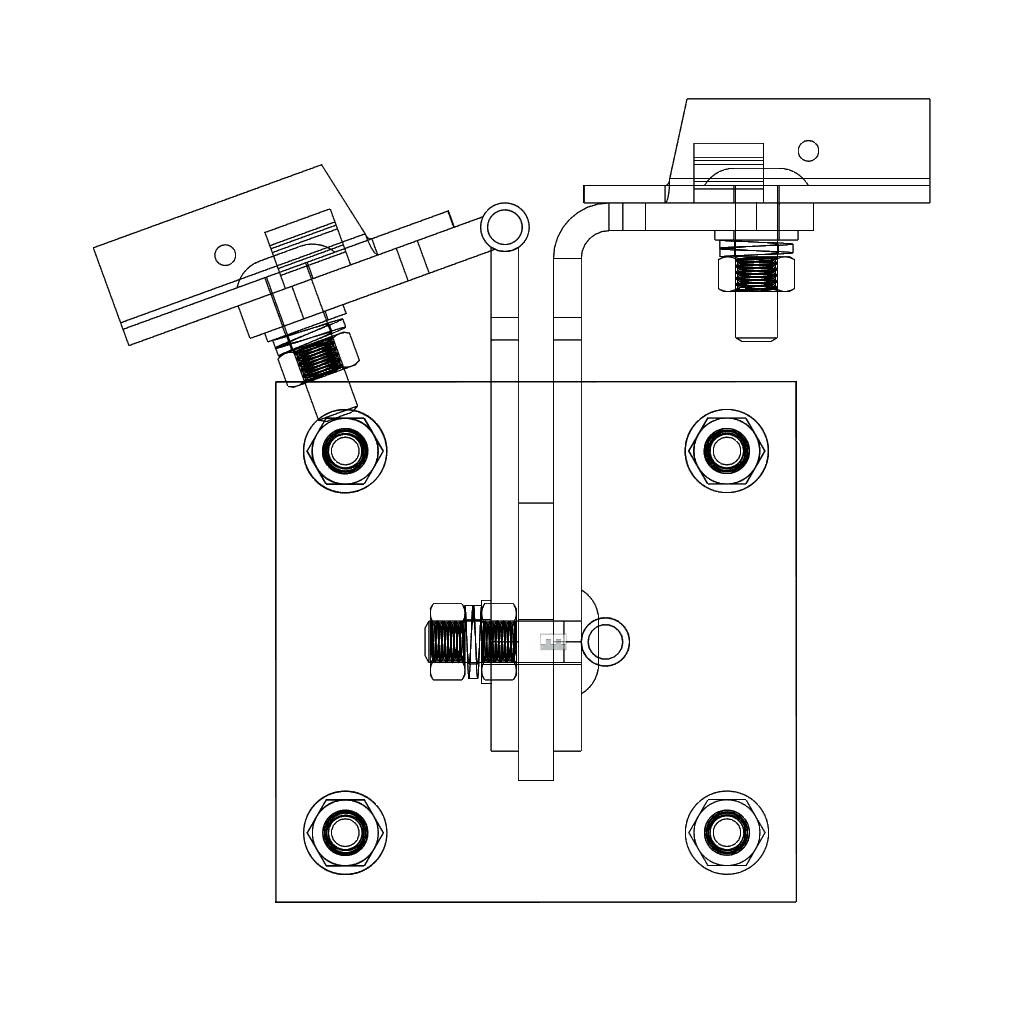

Post Lowering Size 2 Dimensions

Bill of Materials

Post Lowering Size 2 Bill of Materials

Bill of Materials

PartQuantityMaterial
Lowering Bracket Size 21Steel
200mm Outrigger Post Bracket Assy1Steel
