Post Bracket Size 2

Post Bracket Size 2

Part Number: 10024

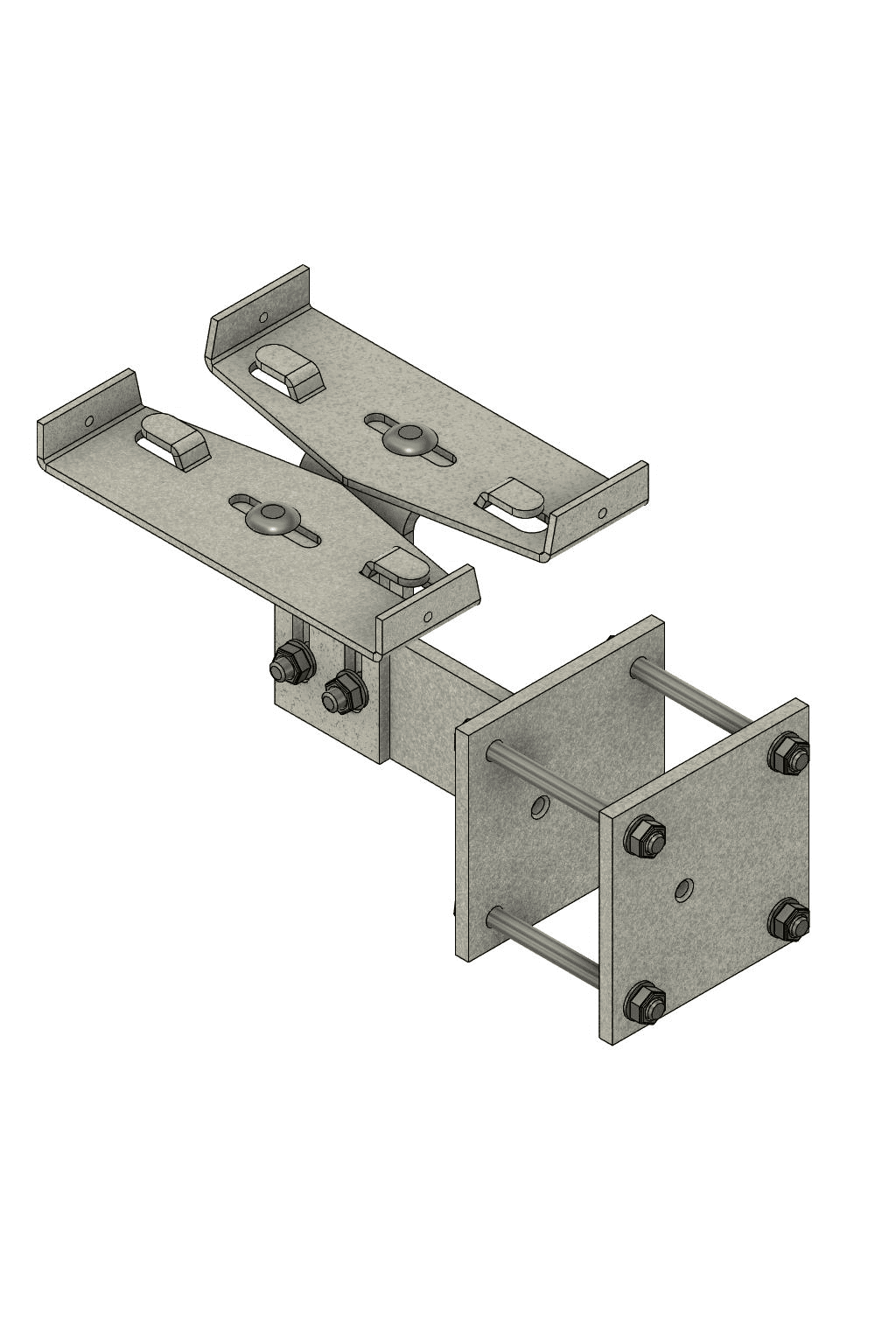

Adjustable galvanized steel for secure side mounted attachment of troughing to pillars. These versatile brackets feature both vertical, horizontal adjustment mechanisms, allowing for precise positioning and alignment of the troughing system. Key features: Corrosion-resistant galvanized finish for durability Vertical adjustment range to accommodate various troughing heights Horizontal adjustment for fine-tuning lateral positioning Compatible with standard troughing sizes Easy installation and adjustment using bolts and slotted holes

Product Dimensions

DimensionValue
Vertical Adjustment85 mm
Horizontal Adjustment50 mm
Outrigger200 mm
Fixing HolesM12

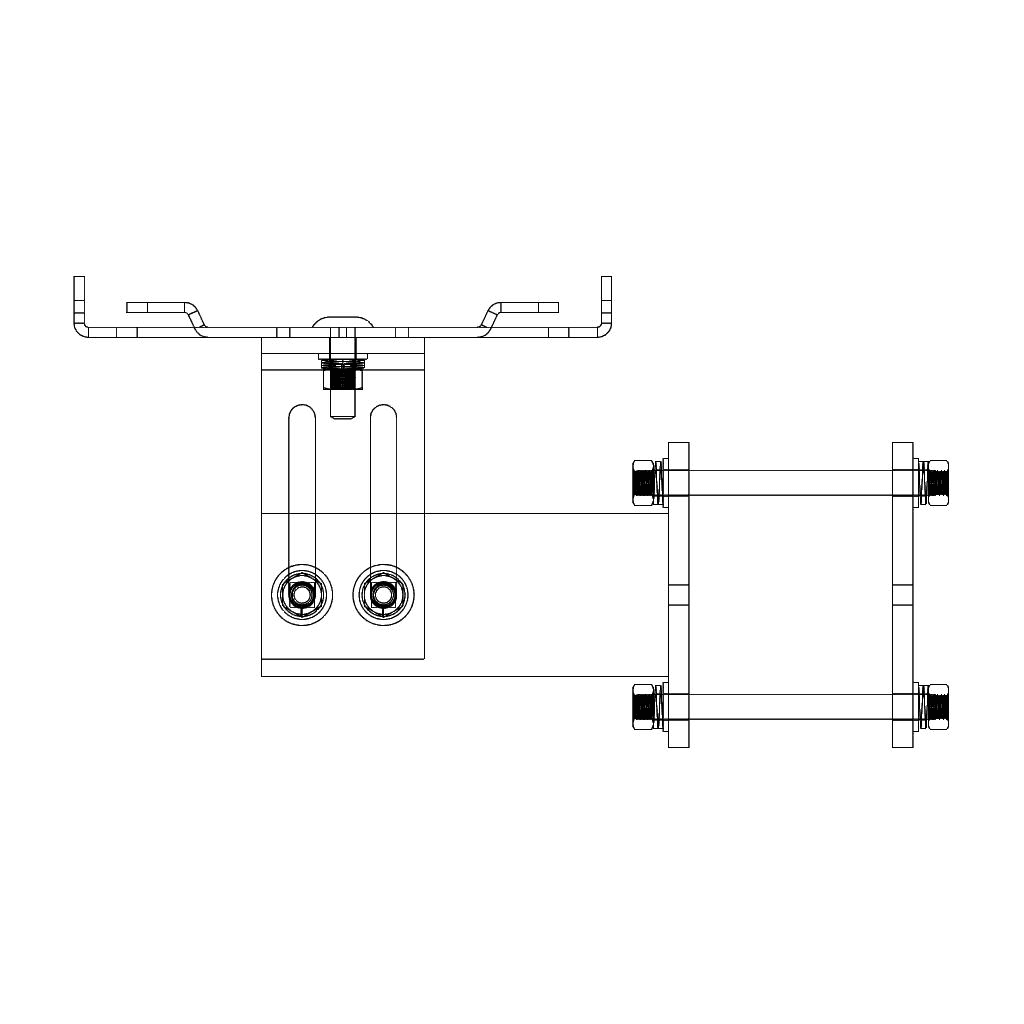

Post Bracket Size 2 Dimensions

Bill of Materials

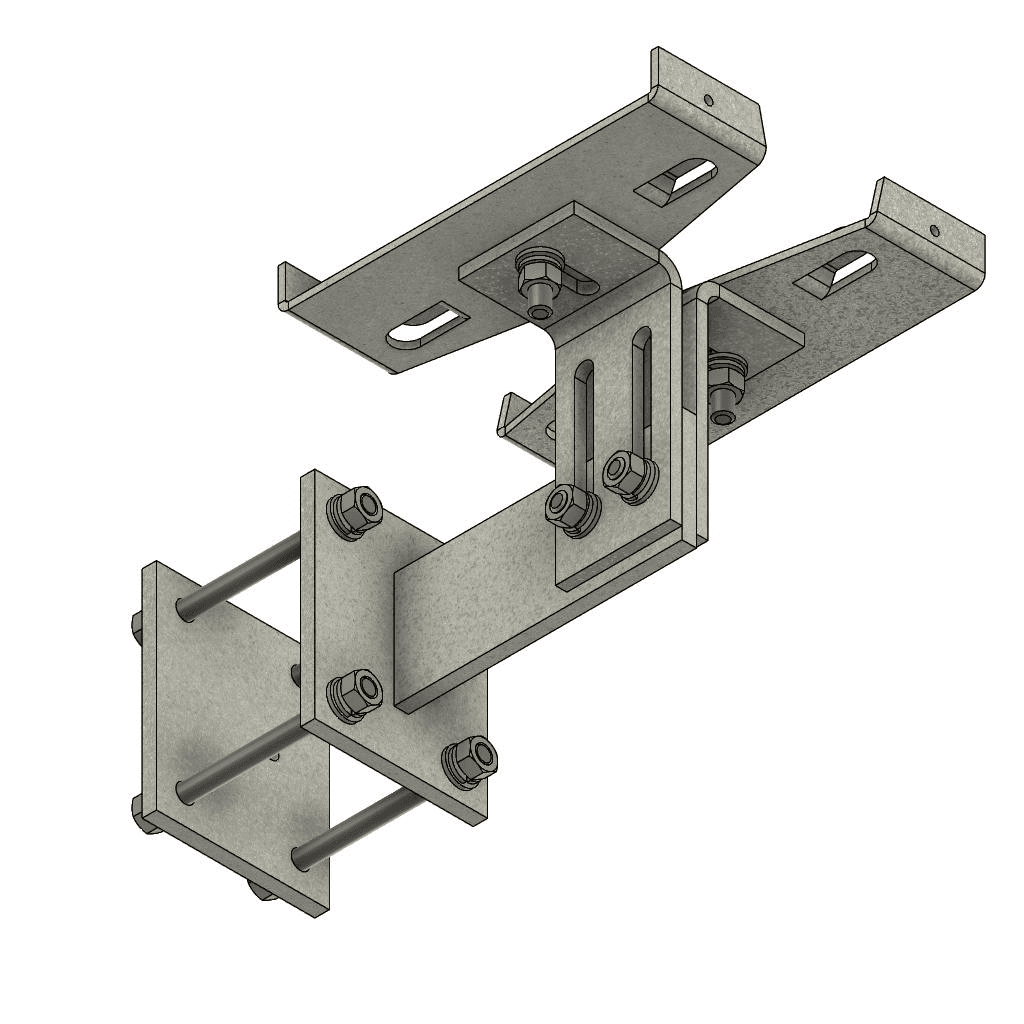

Post Bracket Size 2 Bill of Materials

Bill of Materials

PartQuantityMaterial
Mounting Bracket Size 11Steel
200mm Outrigger Post Bracket Assy1Steel
