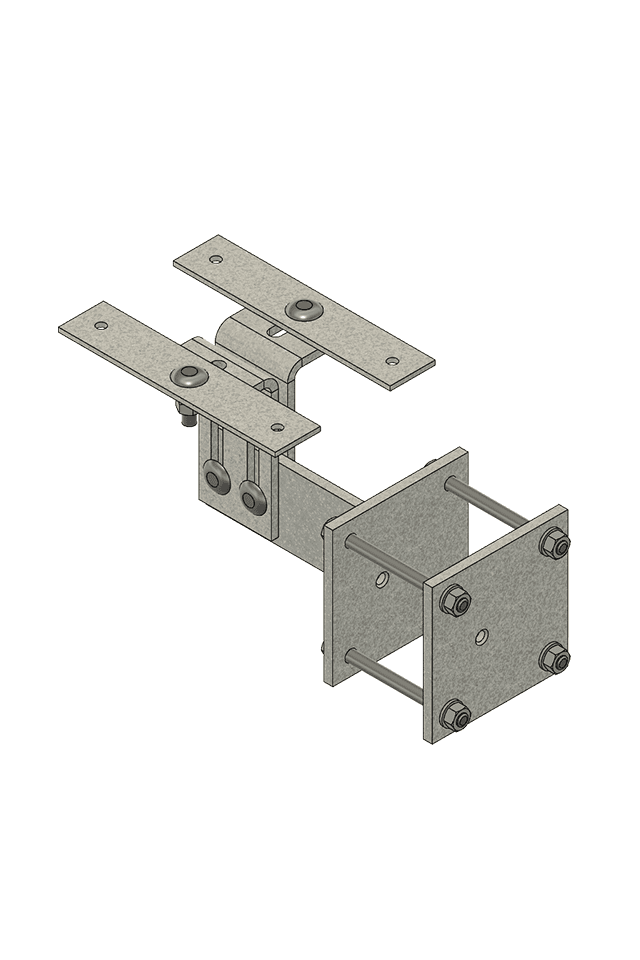

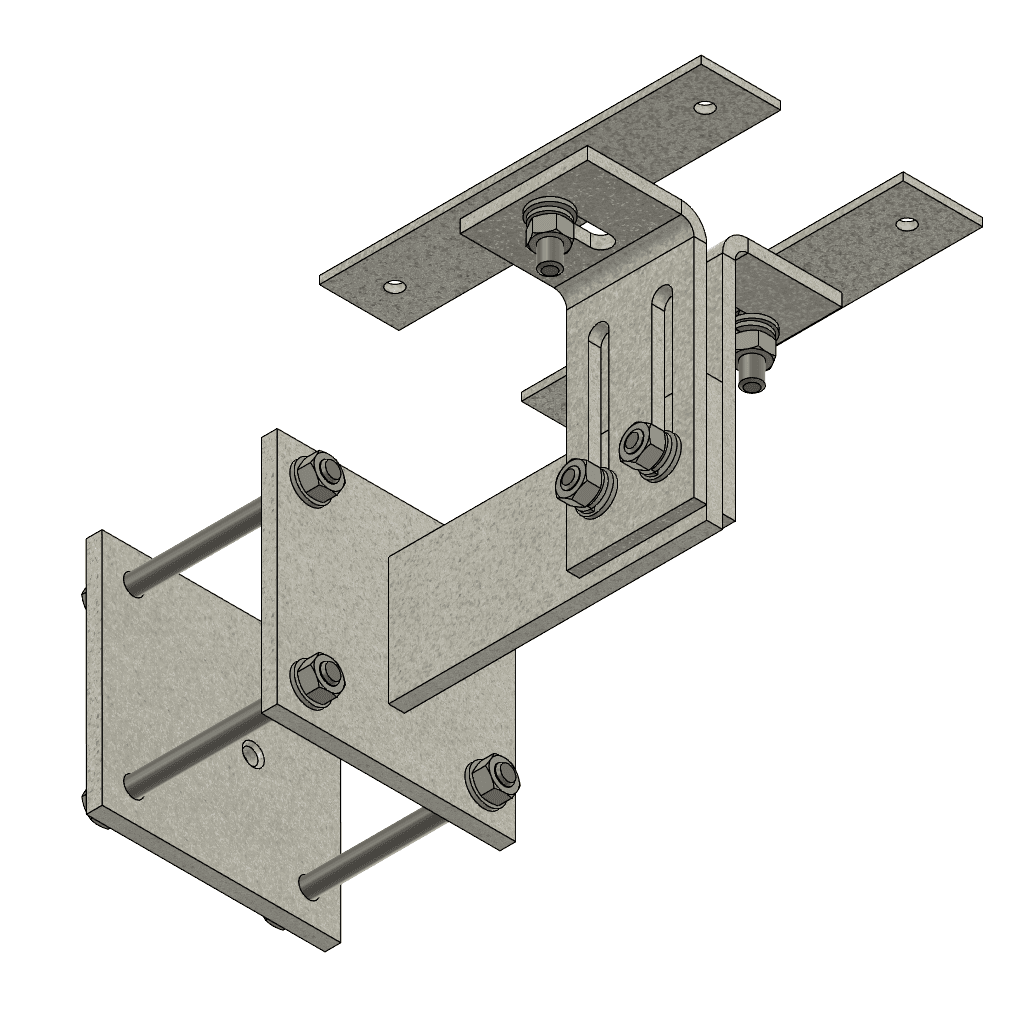

Post Bracket Size 1a

Post Bracket Size 1a

Adjustable galvanized steel for secure side mounted attachment of troughing to pillars. These versatile brackets feature both vertical, horizontal adjustment mechanisms, allowing for precise positioning and alignment of the troughing system. Key features: Corrosion-resistant galvanized finish for durability Vertical adjustment range to accommodate various troughing heights Horizontal adjustment for fine-tuning lateral positioning Compatible with standard troughing sizes Easy installation and adjustment using bolts and slotted holes

Product Dimensions

DimensionValue
Vertical Adjustment85 mm
Horizontal Adjustment50 mm
Outrigger*varies* mm
Fixing HolesM12

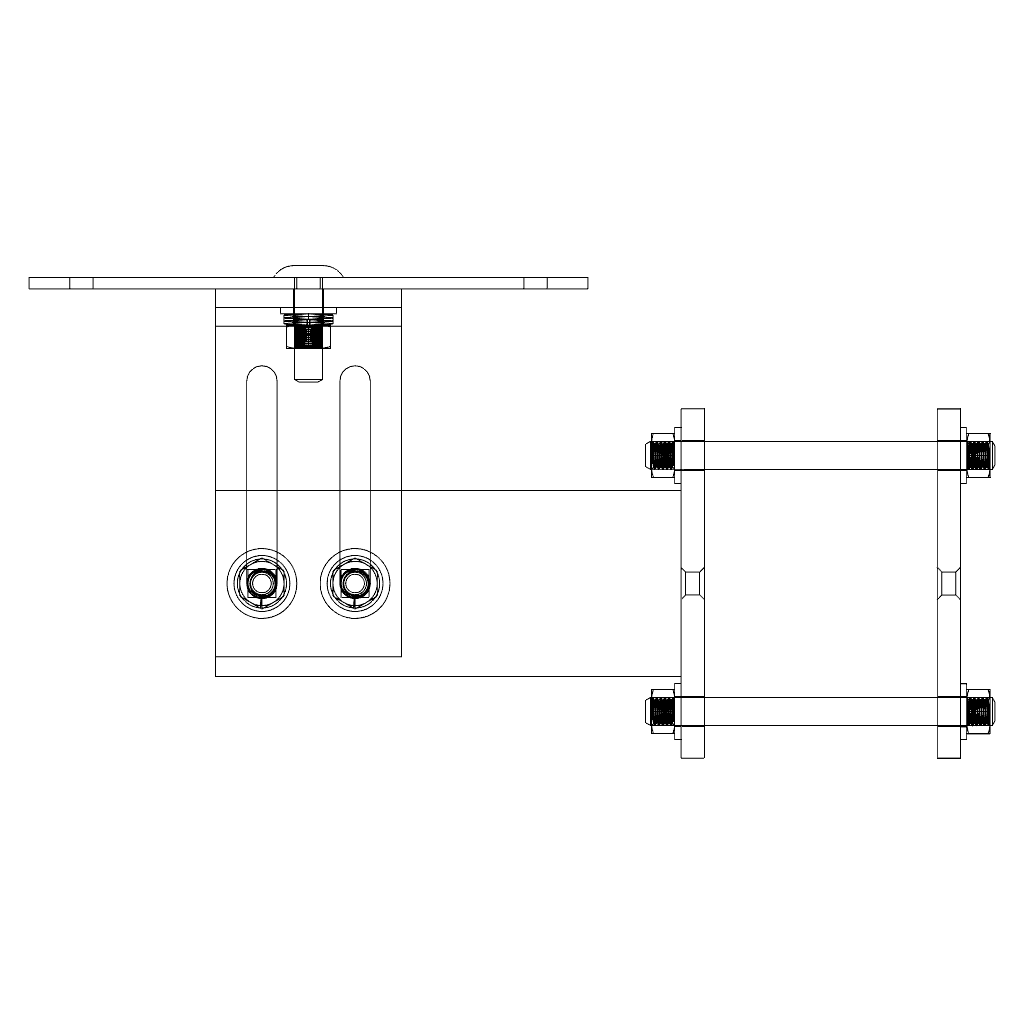

Post Bracket Size 1a Dimensions

Bill of Materials

Post Bracket Size 1a Bill of Materials

Bill of Materials

PartQuantityMaterial
Mounting Bracket Size 1a1Steel
200mm Outrigger Post Bracket Assy1Steel
